Simic Electronics Pvt Ltd.

Specifications

Flexibility and compatibility with FR4 Boards
High Q to many Megahertz
Free from Thermal cracking
High RF current:- dv/dt 20000 v/ms
Ruby muscovite condenser Mica

Applications

RF Instruments
Power Amplifiers
LCR Tuned Circuits
CATV
Lasers

Case Type	Cap (PF) TOL(+/-5%)	Catalog P/N (500VDC)	Catalog P/N (100VDC)
1210	15	CHIP1210ED150JTRRH	CHIP1210EA150JTRRH
	30	CHIP1210ED300JTRRH	CHIP1210EA300JTRRH
	47	CHIP1210FD470JTRRH	CHIP1210FA470JTRRH
	50	CHIP1210FD500JTRRH	CHIP1210FA500JTRRH
	51	CHIP1210FD510JTRRH	CHIP1210FA510JTRRH
	56	CHIP1210FD560JTRRH	CHIP1210FA560JTRRH
	62	CHIP1210FD620JTRRH	CHIP1210FA620JTRRH
	68	CHIP1210FD680JTRRH	CHIP1210FA680JTRRH
	75	CHIP1210FD750JTRRH	CHIP1210FA750JTRRH
	82	CHIP1210FD820JTRRH	CHIP1210FA820JTRRH
	91	CHIP1210FD910JTRRH	CHIP1210FA910JTRRH

Case Type	Cap (PF) TOL(+/-5%)	Catalog P/N (500VDC)	Catalog P/N (100VDC)
1812	100	CHIP1812FD101JTRRH	CHIP1812FA101JTRRH
	110	CHIP1812FD111JTRRH	CHIP1812FA111JTRRH
	120	CHIP1812FD121JTRRH	CHIP1812FA121JTRRH
	130	CHIP1812FD131JTRRH	CHIP1812FA131JTRRH
	150	CHIP1812FD151JTRRH	CHIP1812FA151JTRRH
	160	CHIP1812FD161JTRRH	CHIP1812FA161JTRRH
	180	CHIP1812FD181JTRRH	CHIP1812FA181JTRRH
	200	CHIP1812FD201JTRRH	CHIP1812FA201JTRRH
	220	CHIP1812FD221JTRRH	CHIP1812FA221JTRRH
	240	CHIP1812FD241JTRRH	CHIP1812FA241JTRRH
	250	CHIP1812FD251JTRRH	CHIP1812FA251JTRRH
	270	CHIP1812FD271JTRRH	CHIP1812FA271JTRRH
	300	CHIP1812FD301JTRRH	CHIP1812FA301JTRRH
	330	CHIP1812FD331JTRRH	CHIP1812FA331JTRRH
	360	CHIP1812FD361JTRRH	CHIP1812FA361JTRRH
	390	CHIP1812FD391JTRRH	CHIP1812FA391JTRRH
	430	CHIP1812FD431JTRRH	CHIP1812FA431JTRRH
	470	CHIP1812FD471JTRRH	CHIP1812FA471JTRRH

Case Type	Cap (PF) TOL(+/-5%)	Catalog P/N (500VDC)	Catalog P/N (1000Vdc)
2220	330	CHIP2220FD331JTRRH	CHIP2220FF331JTRRH
	360	CHIP2220FD361JTRRH	CHIP2220FF361JTRRH
	390	CHIP2220FD391JTRRH	CHIP2220FF391JTRRH
	430	CHIP2220FD431JTRRH	CHIP2220FF431JTRRH
	470	CHIP2220FD471JTRRH	CHIP2220FF471JTRRH
	500	CHIP2220FD501JTRRH	CHIP2220FF501JTRRH
	510	CHIP2220FD511JTRRH	CHIP2220FF511JTRRH
	560	CHIP2220FD561JTRRH	CHIP2220FF561JTRRH
	620	CHIP2220FD621JTRRH	CHIP2220FF621JTRRH
	750	CHIP2220FD751JTRRH	CHIP2220FF751JTRRH
	820	CHIP2220FD821JTRRH	CHIP2220FF821JTRRH
	910	CHIP2220FD911JTRRH	CHIP2220FF911JTRRH
	1000	CHIP2220FD102JTRRH	CHIP2220FF102JTRRH

We offer close tolerance and non-standard value capacitors also. Order by complete Part number as above. case sizes: 1210, 1812 , 2220

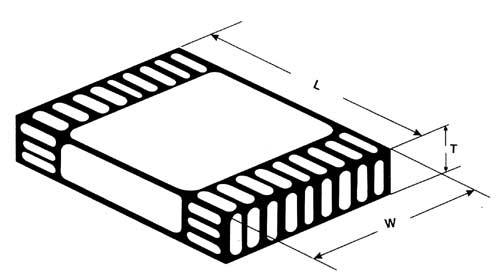

Dimensions (all in mm):

Case Type	L (Max)	W (Max)	H (Max)	I (Min/Max)
1210	3.8	3.1	1.8	0.3/1.0
1812 (1-250)	5.2	4.0	2.1	0.3/1.3
1812 (251-470)	5.2	4.0	2.5	0.3/1.3
2220	6.1	5.4	2.8	0.3/1.3
2220 (1000VDC)	6.1	5.4	4.0	0.3/1.3

Tape And Reel:

Case Type	PF Range	Reel (QTY/Reel)
1210	1-91	1000
1812	1-180	1000
1812	181-470	500
2220	330-1000	500

Bulk Packing: 100pcs/Bag.

Marking Specifications:

Example: E1= 15pf

Marking Details:

Base Value	Code Later	Base Value	Code Later
10	A	45	e
11	B	47	S
12	C	50	f
13	D	51	T
15	E	55	g
16	F	56	U
18	G	60	m
20	H	62	V
22	J	65	h
24	K	68	W
25	a	70	n
27	L	75	X
30	M	80	t
33	N	82	Y
35	b	85	k
36	P	90	y
39	Q	91	Z
40	d	95	r
43	R

Multiplier	CODE No
X0.1	0
X1	1
X10	2
X100	3
X0.01	9

Specifications:

Ordering Information

CHIP2220	F	D	102	J	TR	RH
CASE TYPE	TEMPERATURE COEFFICIENT	RATED VOLTAGE	CAPACITANCE (PF)	CAPACITANCE TOLERANCE	TR-TAPE & REEL	ROHS COMPLIANT
	ReferSpec.no 2	Refer Spec.no. 3	102-1000PF	Refer Spec. no. 4	BULK

1. Capacitance Range

Case Type	PF Range
1210	1-91
1812	1-470
2220	330-1000

2. Temperature Coefficient

Characteristic	Capacitance Range (PF)	Temp. Coefficient (PPM/C)	Capacitance Drift
C	0.5 to 10	100+/-100	+/-(5% + 1PF)
E	10.5 to 30	50 +/-50	+/- (1%+ 1PF)
F	30.5 and up	25 +/-25	+/- (0.5% + 1PF)

3. Rated Voltage

D - 500VDC

C – 300VDC

A – 100VDC

F –1000VDC

4. Capacitance Tolerance

J - +/- 5%

G - +/-2%

F - +/-1%

D - +/-0.5PF

5. Capacitance Value

Within Tolerance When Measured As Follows:

1-1000pF@1MHz

>1000pF @1KHz

6. Dissipation Factor

0.0010 AT 1MHzfor below 1000pf(MAX)

7. Temp. Range

-55°C TO +125°C

8. Insulation Resistance

Min 100,000 MEGA OHMS when measured at 100VDC.

9. Withstanding Voltage

200% of rated Voltage for 1 to 5 Seconds without Damage

10. Heat Resistance

Subject Capacitors to 125°C +/- 2°C for 2hrs then the insulation Resistance will be no less than 5G ohms.

11. Moisture Resistance

Subject Capacitors to 40+/-2°C at 90-95% humidity for 500(+24-0) hours. Return to room ambient for 24 hours. There will be no Visual damage the capacitors will meet the limits of the table below

Withstand voltage	Insulation resistance	DF	Value
Initial Voltage	30 G ohms	150 % Max Initial limit	Initial value+/-3% Or +/-0.5pf

12. Temp Coefficient & Drift

Measure the values at 25°C- 55°C, 25°C+125°C and at 25°C all +/- 3°C after stabilizing at each temperature the capacitor will meet the limit mentioned in ordering information.

13. Solder heat resistance

Subject the capacitors to molten solder at 250°C +/-5°C for 5 +/-0.5 seconds after 10 to 15 seconds pre heating at 80 -120°C +/-3°C. There will be no visual damage and capacitors will meet the limit given below.
