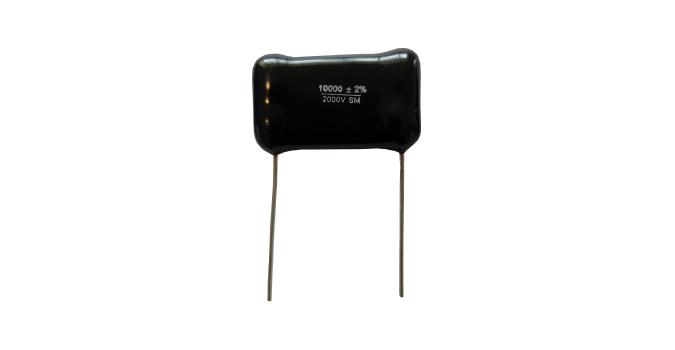

Type Case	Capacitance Range (IN pF)	Voltage (IN WVDC)
HV - 1	1 to 15000	1000 to 3000
HV - 2	1 to 5000	1000 to 5000

Capacitance Range	Max. Voltage (WVDC)
1 - 15000 pF	1000, 2000, 3000
1 - 5000 pF	1000, 2000,3000, 4000, 5000

Max. Dimensions
L - 34 mm	Lead Dia 'Ø'	- 1mm
W - 32 mm	Lead Spacing 'S'	- 20 ± 1 mm
T - 10 mm	Lead Length 'R'	- 50 mm (Max.)

Coating	Conformal epoxy coating with epoxy impregnation
Tolerance	± 0.5pF, ±1pF, ±1%, ±2%, ±5%
Temperature	-55°C to + 125°C
T.C.	0 to 70 ppm/°C
I.R.	For 1 - 10,000pF ............ 1,00,000 Meg ohms (min.)
	For 10,001 To 15,000pF ...... 10,000 Meg ohms (min.)
Tan Delta	For 1 - 1,000pF - ...................... 0.0010 at 1MHz
Limit	For more than 1,000pF - .............. 0.0020 at Khz
